Fiber Optic Components

MTP Hydra Cable

MTP / MPO Cable Assemblies

MTP/MPO hydra cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, ST, FC, etc.) on the other end, deployed in the Plug-and-Play (PnP) cassette modules. These cable assemblies meet the demands of 10G/25G Ethernet, higher speed 40G/100G Ethernet, and can be used for standards-compliant cable plant migration from 10G/25G to 40G/100G.

The Fiberwe hydra cables are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material. With highly integrated design and manufacturing capability, Fiberwe provides customized MTP/MPO hydra cables which are 100% tested to deliver optimal performance and reliability.

Features

  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 8, 12, 24
  • MTP/MPO connector type available in Male, Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
  • Cable jacket type available in Hytrel, OFNR, LSZH, OFNP
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Single-fiber connector type available in LC, SC with APC or UPC polishing type
  • Cable length available in 1 to 999 meters
  • Improve and simplify fiber routing, decrease fiber management space
  • Comply with Telcordia GR-1435-CORE, GR-326-CORE, RoHS

Applications

  • Data Center Interconnect
  • Backbone Installations
  • High-Density Fiber Management
  • Telecommunication Networks
  • Broadband/CATV Networks
  • LAN/WAN Premise

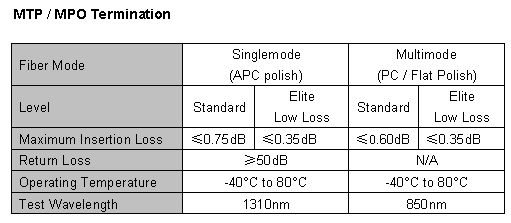

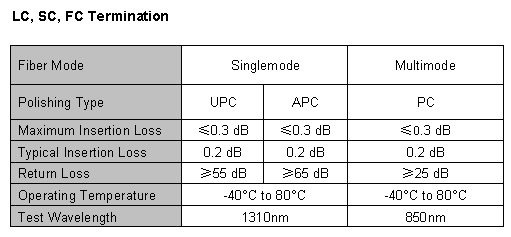

Specifications

Further Information
Master Connector
MTP Hydra Cable
