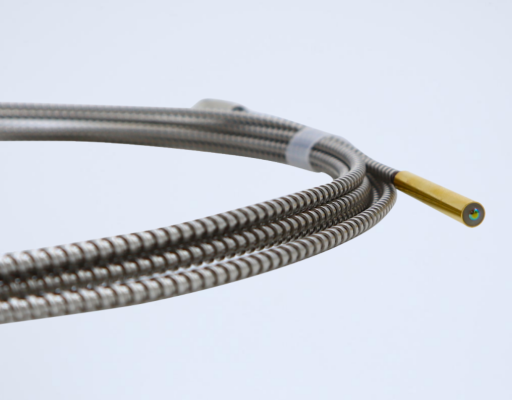

High Temperature Fiber Collimator
High Temperature Fiber Collimator uses high-temperature optical fiber, materials, and production processes. This product can meet the application environments with a working temperature of -40~220℃. The high-temperature resistant FC/APC connector is specifically designed for high-temperature devices, ensuring stable optical signal transmission in high-temperature environments. The product undergoes a 48-hour 220°C reliability test before delivery, ensuring long-term reliability of the device working under high-temperature conditions.
Both single mode and multimode type High Temperature Fiber Collimators are available. Ultra High Temperature (1000℃) Fiber Collimator is also available for harsh environment.
- Fiber Optic Rotating Connector
- Fiber Optic Beam-expanded Connector
- Optoelectric Hybrid Slip Ring
- Fiber Optic Rotating Pan Tilt
- Optical Current Transducer
- Plug-and-play Optical Collimation Link
- High Precision Package Housing
- Plug-and-play Low Optical Loss
- Non-contact Optical Signal Transmission
- Long Service Life

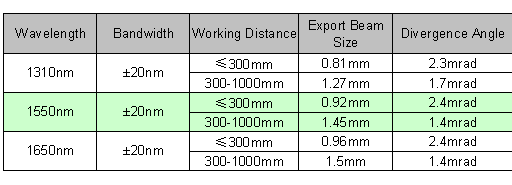

1310 nm - 1650 nm, SM, High Temperature Fiber Collimator

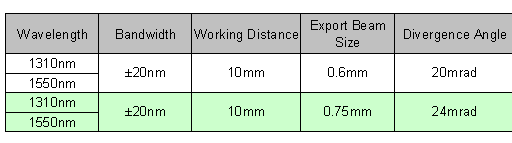

Multimode 1310 nm - 1550 nm, High Temperature Fiber Collimator
