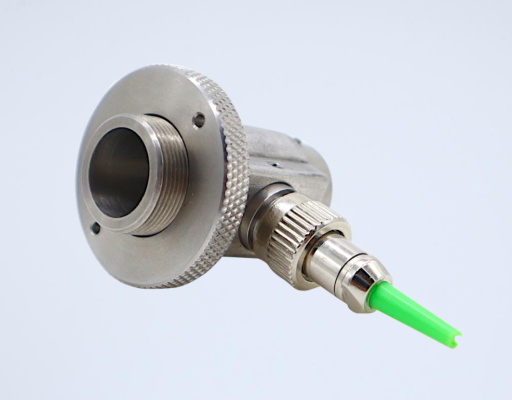

Broadband Fiber Collimator
Broadband Fiber Collimators use a 90° off-axis parabolic mirror, so the focal length of this mirror remains constant over a wide wavelength range. They are the ideal choice for collimating wide spectral wavelength light when precise focal adjustment is required, serving as a collimated multi-color light source or coupling device. A silver coating is applied to the lens surface to enhance the output efficiency within the wavelength range of 450 nm to 20 μm. This collimator can be equipped with FC/PC, FC/APC, or Sma905 connectors.
They are also available with a UV-enhanced aluminum coating, for high reflectivity in the 250?nm to 450?nm wavelength range.
- Wide Spectral Wavelength Collimation
- Multi-color Light Coupling
- Multimode Fiber
- Fiber Optic Labs, R&D
- Achromatic Design for Collimation
- Protected Silver Coating Offers High Reflection Over 450 nm - 20 μm
- UV-Enhanced Aluminum Coating Offers High Reflection Over 250 - 450 nm
- Non-Magnetic Stainless Steel Housing

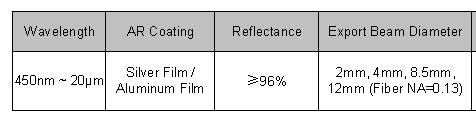

450 nm ~ 20 μm, Broadband Fiber Collimator
